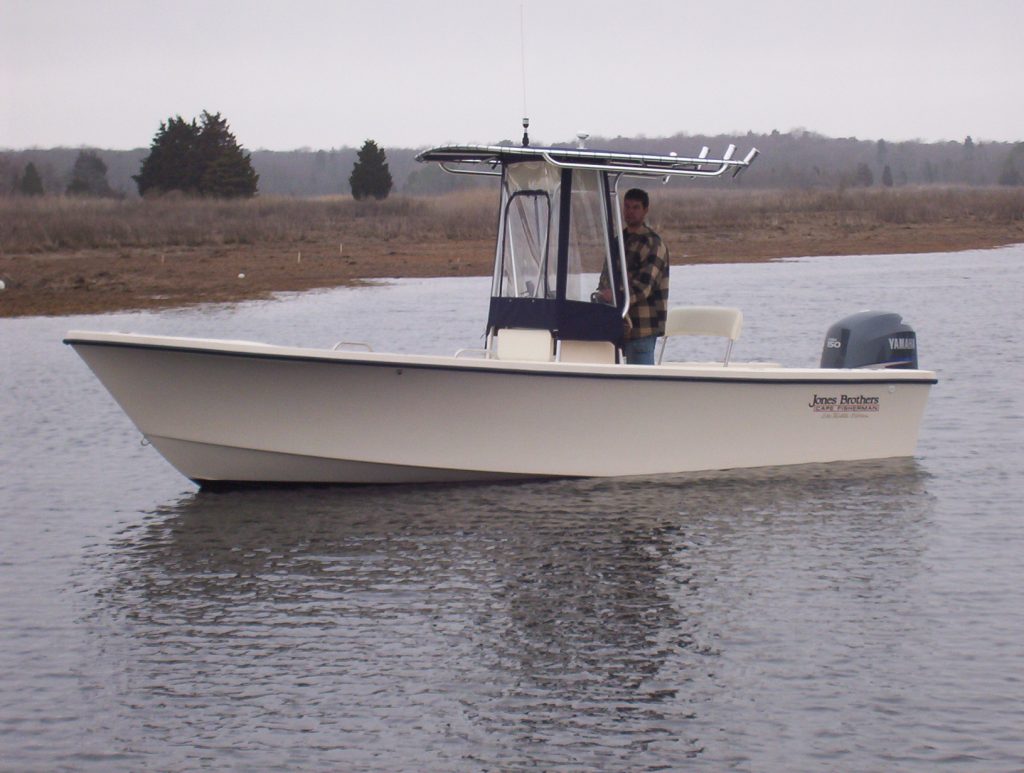

Cape Fisherman 20

The Cape Fisherman 20 comfortably handles three anglers, or more if you share well, and is economical to run. The 20 is easily towed and can be self-launched. For family boating, consider adding the forward casting deck to provide seating for a boatload of kids, and increase storage capacity for camping and beach gear.

Length20′ 4″
Beam8′
Cockpit Depth23″ at stern
Dead Rise14° at transom
Fuel Capacity51 gallons
Rec HP150
Max HP200
Shaft Length25″
Hull Weight2000 lbs.
Draft12″
Person Capacity9
Person Load1275 lbs.
Max Load1860 lbs.

Fuel & Electrical

  • 51 Gallon Fuel Tank
  • Bennett Electric Trim Tabs
  • LED Pop-Up Bow Light
  • LED Lights (Cockpit, Navigation and Anchor)
  • Battery, Tray and Wiring Harness to Console
  • Six Gang Booted Switch Panel
  • Ten Gang Fuse Block

Console

  • Super Fish Console (STD)
  • Super Fish Windshield
  • SeaStar Hydraulic Steering
  • Stainless Steel Steering Wheel
  • Console Grab Rail
  • Ritchie Compass
  • Console Fold-Down Storage Hatch
  • USB Accessory Outlet

Fishing Features

  • Four Stainless Steel Rod Holders
  • Under Gunwale Poly Rod Racks

Hull, Deck & Cockpit

  • 100% Composite Construction
  • Fiber Glass Stringer Grid
  • Self Bailing Cockpit
  • Automatic Bilge Pump
  • Flush Anchor Locker
  • Foam Flotation
  • Three Pull-Up Cleats
  • Heavy Duty Rub Rail/SS Insert
  • Jump Seats
  • Non-Skid Gunwales and Cockpit
  • Rigging Conduit Beneath the Floor
  • Stainless Steel Fuel Fill

Power

Jones Brothers exclusively uses Yamaha engines and accessories when rigging boats. The following engines are available on the Cape Fisherman 20:

  • Yamaha F150XC, F200XC or F200XSA 4-Stroke Engine
  • Package includes complete instrumentation, stainless steel propeller, rigging and 10 micron stainless steel fuel filter

For more information, examine the Jones Brothers engine options and rigging pages.

Yamaha PowerMatchedâ„¢ System Warranty

All boats built by Jones Brothers Marine qualify for the Yamaha PowerMatched™ System warranty. This gives buyers a warranty on the entire power system, which matches the three year warranty that comes with the four stroke engine. In addition to the engine warranty, the PowerMatched warranty includes:

  • Digital Gauges
  • Ignition Switch
  • Controls
  • Wiring Harness
  • Fuel Filter
  • Control Cables
  • Stainless Steel Propeller

Options (chart)

  • 12″ Hand Rails
  • Bimini Top
  • Casting Platform Cushion (Bow)
  • Casting Platform/Fish Box Forward
  • Console Cooler
  • Console Cover – Half
  • Console Cover – Full
  • Console Cushion Set
  • Console Fly Rod Holders
  • Console Rod Rack (Aluminum)
  • Console Upper Storage Box
  • Console Upper Storage Box with Electronics Flush Kit
  • Custom Hull Color
  • Custom Hull Two-Tone w/Boot Stripe
  • Dash Storage Box
  • Dual Batteries, Trays, Switches and Wiring Harness
  • Edson Steering Wheel
  • Extra USB Accessory Outlet
  • Helm Master EX Kit – Joy Stick
  • Helm Master EX Kit + Joy Stick
  • Jump Seat Cushions
  • Lean Post – Aluminum with Storage Box
  • Lean Post – Fiberglass (SM) no Livewell
  • Lean Post – Fiberglass (SM) with Livewell
  • Lean Post Backrest without Rocket Launchers
  • Lean Post Backrest with Rocket Launchers
  • Lean Post Cover for Aluminum LP
  • Lean Post Cover for Fiberglass LP
  • Olive Drab Hull & Accessories
  • Pull-Up Spring Line Cleats
  • Removable Leaning Post
  • Swim Platform
  • T-Top Enclosure
  • T-Top with Rocket Launchers
  • Trolling Motor Wiring with Rub Rail Nav. Lights
  • Washdown System

Disclaimer – Due to the price volatility of marine components and accessories, the prices in the Quick Quote estimator may not always be accurate. While Jones Brothers tries to maintain accurate information on the website, the prices should be considered “estimates.” For an official quote, please continue to the last page in the estimator. This optional step emails your contact information and boat configuration to a company representative.
